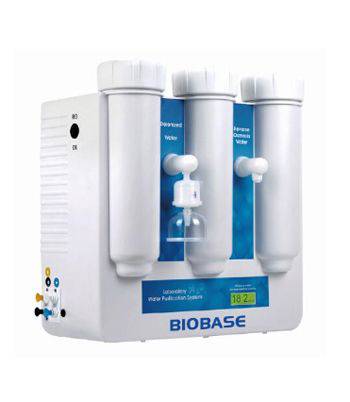

Water Purifier (Automatic RO/DI water)

Model

SCSJ-III 15

SCSJ-III 30

Water Output Type

RO and DI water

Water Output Speed

15L/H

30L/H

Purifying Procedure

PF+AC+RO+DI

Water Supply Requirement

Tap water: TDS<200ppm, 5~45°C, 1.0~4.0Kgf/cm2                                  (if inlet TDS>200ppm, extra pretreatment filter is recommended)

Purification System

Pretreatment unit

Special spun fiber filter *1,Special active carbon block filter *1,                   Special active carbon block filter *1

RO unit

100GPD RO membrane *1

100GPD RO membrane *2

Subsequent unit

Mixed bed resin cartridge *2

Mixed bed resin cartridge *3

Pure Water

Quality

Desalination rate

>99%

TDS

RO water: 5~10 ppm

Resistivity

15~18.2MΩ·cm

Conductivity

0.067~0.055μs/cm

Control System

Automatic electronic pressure sensor controlling, RO membrane auto flushing, Automatic stop when water supply shortage,                                    Automatic stop when water tank full,                                           Automatic cutting off water when pump stop,                                        24 hours non-stop work

Water Quality Monitor

TDS meter,Online resistivity monitor(Optional)

Consumption

48W

72W

Power Supply

AC110/220V±10%, 50/60Hz

Standard Configuration

Main body(include1 set cartridge),15Lwater tank,TDSmeter

Externa lSize(W*D*H)

220*410*420mm

Package Size(W*D*H)

590*490*550mm

Gross Weight

22kg
