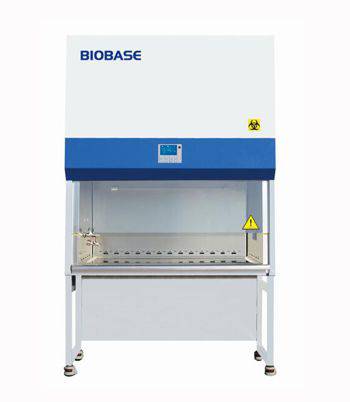

Product Description
Details:
LCD Display Front Window
Large LCD display is easy to monitor all the safety
parameters at a glance; and ergonomically sized
control panel improves users interface.
SS Water tap &Gas tap Work Zone
Footmaster Caster Waterproof Socket
UV Lamp
Emission of 253.7 nanometers for most efficient decontamination.
Advantages:
1. Motorized front window.
2. Large LCD display, all information displayed.
3. Automatic air speed adjustable with filter block.
4. Side & back wall is made up of single piece stainless steel.
5. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
6. Front 10°slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.
MODELS:
|
Model |
11235BBC86(3') |
BSC-4FA2(4') |
11236BBC86(6') |
|
|
External Size(W*D*H) |
1087*775*2265mm |
1383*775*2295mm |
1873*775*2295mm |
|
|
Internal Size(W*D*H) |
910*600*660mm |
1210*660*660mm |
1700*600*660 mm |
|
|
Work Surface Height |
750mm |
|||
|
Max Opening |
520mm (21'') |
550mm (22'') |
550mm (22'') |
|
|
Tested Opening |
Safety height 200mm (8'') |
Safety height 200mm (10'') |
Safety height 200mm (10'') |
|
|
Airflow Volume |
Inflow |
348m3/h(205cfm) |
587m3/h(275cfm) |
824m3/h(382cfm) |
|
Down flow |
65%:649m3/h(375cfm) |
60%:863m3/h(498cfm) |
60%:1212m3/h(700cfm) |
|
|
Exhaust |
35%:348m3/h(211cfm) |
40%:587m3/h(287cfm) |
40%:824m3/h(394cfm) |
|
|
Front Window |
Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV |
|||
|
HEPA Filter |
Two, 99.999% efficiency at 0.3um, filter life indicator |
|||
|
Filter Guard Type |
Aluminum alloy frame |
|||
|
Noise |
NSF 49≤61 dB/EN 12469≤58 dB |
|||
|
Illumination |
≥1000Lux |
|||
|
Display |
LCD Display |
|||
|
Waterproof Socket |
2, Total consumption:≤500W |
|||
|
Tap |
Water tap*1, Gas tap *1 |
|||
|
Ground Resistance |
≤ 0.10Ω |
|||
|
Power Supply |
AC220/110V±10%, 50/60Hz ±1Hz, Full load Amps: 9A, BTU/Hr: 1689 |
|||
|
Consumption |
300W |
400W |
500W |
|
|
Alarm |
Abnormal airflow velocity; Filter replacement; Front window at unsafe height |
|||
|
DC Motor |
One ECM motor, 110V& 220V acceptable, Speed adjustable, high efficiency and low power consumption |
|||
|
Material |
Working area: 304stainless steel/ Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating |
|||
|
UV Lamp |
18W |
30W |
40W |
|
|
Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination |
||||
|
Illuminating Lamp |
10W*2 |
18W*2 |
22W*2 |
|
|
LED lamp |
||||
|
Standard Accessory |
Illuminating lamp, UV lamp *2, Base stand, SS water & gas taps, Drain valve, Waterproof sockets, Stainless Steel I.V. Bar with 10 hooks |
|||
|
Optional Accessory |
Armrest, Airflow tester, Formalin fumigation sterilizer,Infrared sterilizer, Adjustable base stand, Remote control, Electric height adjustable base stand |
|||
|
Package Size (W*D*H) |
1220*1000*1840mm |
1540*1080*1900mm |
2020*1080*1900mm |
|
|
Gross Weight |
270kg |
334kg |
363kg |
|
Standard Accessory:
Fluorescent lamp 1pc
UV lamp 2pcs
Base stand 1pc
SS water & gas tap 2pcs
Drain valve 1pc
Waterproof socket 2pcs
Optional Accessory:
Armrest 1pc
Airflow tester 1pc
Formalin fumigation sterilizer 1pc
Infrared sterilizer 1pc
Adjustable base stand 1pc
Remote control 1pc
