General
parameters
|

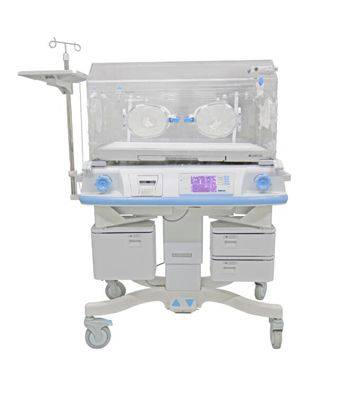

Model
|
BJPX-3101
|
|
Power Supply
|
AC220-230V/50Hz,1300VA
|
|
Maximum heater output power
|
350W/240V
|
|
Auxiliary power output
|
AC220-230V/50Hz,3A
|
|
Heater instructions
|
0～100%
|
|
Temperature control mode
|
Box temperature mode; infant mode
|
|
Box temperature control temperature range
|
25～37℃；37～39℃(Leapfrogging Mode)
|
|
Skin temperature control temperature range
|
34～37℃37～38℃（Leapfrogging Mode）
|
|
Sensor temperature display range
|
5～65℃
|
|
Warm-up time(ambient temperature is generally + 22 ℃)*
|
No more than 40 minutes
|
|
Temperature variability*
|
No more than 0.5℃
|
|
Temperature uniformity * (the mattress is in a horizontal position)
|
No more than 0.8℃
|
|
Temperature uniformity * (the mattress is in an inclined position)
|
No more than 1.0℃
|
|
The difference between average incubator temperature and control temperature
|
No more than 1.0℃
|
|
Skin temperature sensor accuracy
|
±0.2℃
|
|
Humidity
control
|
The running time of the water tank is filled with distilled water after
|
Humidity below 70%RH, at least 24 hours
|
|
Tank capacity
|
1200ml
|
|
Humidity display range
|
0%RH～99%RH
|
|
Humidity control range
|
0%～90%（Adjust 1% each time）
|
|
Humidity control precision
|
±5%RH
|
|
Humidity display accuracy
(ambient temperature 25℃, ambient humidity 45%RH + 5% RH)
|
±5%RH
|
|
Note: in the context of a fairly high ambient humidity, it may not be possible to achieve a
relatively low humidity control
|
|
Oxygen
concentration
control
|
Oxygen concentration display range
|
0%～99%
|
|
Oxygen concentration display resolution
|
1%
|
|
Oxygen concentration display accuracy
|
±2% O?(The oxygen concentration set value of less than25%)
±3% O?(The oxygen concentration set value of more than 25%)
|
|
Oxygen concentration control accuracy
|
±4%O?Concentration within the volume
|
|
Oxygen concentration setting range
|
20%～60%（Adjust 1% each time）
|
|
Oxygen sensor service life
|
Use up to 10,000 hours at 100% oxygen concentration
|
|
Ambient
temperature
|
The scope of work
|
+20～+30℃
|
|
Transportation and storage
|
-20～+55℃
|
|
(suggested that the user should not be used in an environment outside the specified range)
|
|
Relative humidity
|
Relative humidity operating range
|
30%～75%RH
|
|
Transportation and storage
|
No more than 93%RH
|
|
Note :( not recommended to be used outside the specified range of environments)
|
|
Atmospheric pressure
|
Transport and storage atmospheric pressure range
|
500hPa～1060hPa
|
|
Working atmospheric pressure range
|
800hPa～1060hPa
|
|
Applicable Environment Altitude
|
≤2000m
|
|
Overvoltage category
|
Ⅱ
|
|
Pollution Level
|
2
|
|
Air flow rate
|
Ambient air flow rate
|
Less than 0.3m/s
|
|
Other indicators
|
Ambient noise in constant temperature enclosure
|
The stable temperature is not more than 45dB (A)
In other states is not more than 50dB (A)
Ambient noise is not more than 35dB (A)
|
|
Ambient carbon dioxide concentration in constant temperature enclosure
|
Carbon dioxide gas mixture is injected at the
speed of 750ml/minute right above the mattress about 10cm, the density should be under 0.5%.
|
|
Air velocity above the crib mattress
|
No more than0.35m/s
|
|
General alarm
|
Power off alarm, fan alarm, sensor alarm, deviation alarm, over temperature alarm,
sensor box placement error alarm, water tank placement error alarm, water shortage alarm
|
|
System alarm
|
ROM alarm, internal alarm system,SRAM alarm, EEPROM alarm, real-time alarm,
communication alarm, ADC alarm, keyboard alarm, battery alarm, LCD display alarm,
temperature heating system alarm, humidity heating system alarm
|
|
Note: please refer to the contents of the relevant terms and markers.
|
