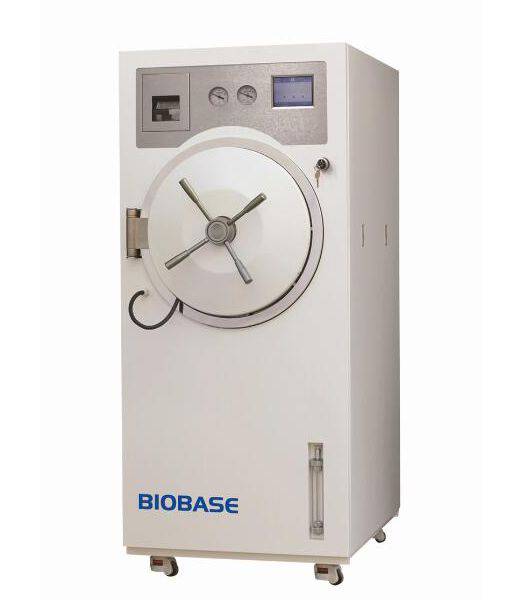

Product Description
"
Features:
1. Sterilizing programs for fabric, instrument, rubber and liquid.
2. Equipped with printer to print date, time and process parameters.
3. Build-in efficient steam generator, microcomputer temperature control.
4. Perfect four-level authority management system to avoid mis-operation.
5. The positive pressure air-exhaust system to exhaust the cold air from chamber.
6. Post-dying function makes the residual humidity of sterilized articles less than 3%.
7. Touch screen display of temperature, pressure, time, running status and failure warning.
8. Over-heat auto protection device, dual door safety lock device, over-pressure relief valve, short-circuit protection and over-pressure protection.
MODELS:
|
Model |
BKQ-B100(H) |
BKQ-B150(H) |
BKQ-B200(H) |
BKQ-B300(H) |
|
Capacity |
100L |
135L |
185L |
300L |
|
Chamber Size |
Φ400*850mm |
φ500*710mm |
φ500*950mm |
φ632*1000mm |
|
Chamber material |
304 medical stainless steel |
|||
|
Max working pressure |
0.23Mpa |
|||
|
Working temp |
105~136℃ |
|||
|
Temp accuracy |
±0.1℃ |
|||
|
Power consumption |
11kw |
17kw |
||
|
Power supply |
380V, 50HZ |
|||
|
External size(mm) |
1250*730*1660 |
1110*750*1742 |
1350*750*1742 |
1400*890*1780 |
|
Packaging size(mm) |
1450*1000*1950 |
1370*890*2060 |
1510*890*2060 |
1700*1050*2090 |
|
Gross weight |
310 kg |
470kg |
540 kg |
830 kg |
