- Description
- Technical Specifications
Product Description
- Antimicrobial coated stainless steel reduces bacterial growth
- A safety shut-off switch automatically turns the ultraviolet light off when the door is open
- Built-in power outlets allow operation of equipment for use in PCR applications
- Workstation includes a 30 minute timer to control UV decontamination

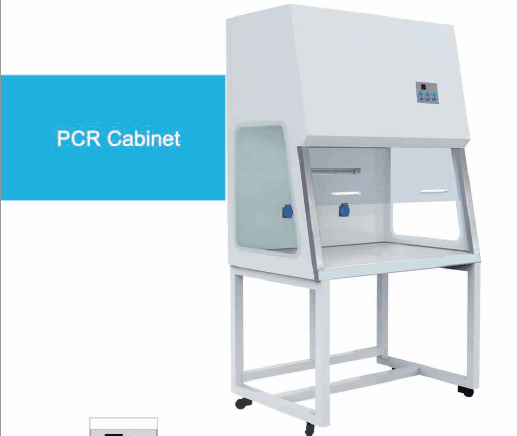

UV HEPA PCR models feature a four-stage filter assembly plus UV to eliminate contamination: Pre-filter captures large dust particles; carbon filter (activated charcoal) eliminates gases, odour, smoke and also reduces ozone to improve microarray data quality; HEPA (high efficiency energy particulate) filter blocks particles down to 0,3 microns; and the ZerOzone catalyst grid blocks ozone. A very gentle downwards air pressure creates a working environment that blocks entry of unwanted contaminants on PCR samples.
- LED Display with UV Timer
-
2 waterproof sockets are located in the back wall of the cabinet for optimum convenience of using small devices inside the PCR workstation.
-
UV Lamp - Emissions of 253.7 nanometers for the most efficient decontamination.
-
Side Glass Window -The side galss windows maximize light and visibility inside the cabinet, providing a bright and open working environment.
-
Shelf with IV bar
-
HEPA filter efficiency 99.999% at 0.3μm.
PCR Cabinet Air Pattern
ADVANTAGE:
1. LED display.
2. UV sterilization system.
3. HEPA filter efficiency 99.999% at 0.3μm.
4. Interlock function: UV lamp only can be switched on when the front window is closed, ensuring operator safety.
5. UV timer (1-99 minutes): When the setting time expires, the UV lamp automatically switches off in preparation
for the next experiment.
ECHNICAL PARAMETERS:
|
Model |
PCR800 |
PCR1000 |
PCR1200 |
PCR1300 |
PCR1500 |
|
External Size (W*D*H) |
800*700 *1770mm |
1000*705 *1770mm |
1200*700 *1770mm |
1300*700 *1770mm |
1500*700 *1770mm |
|
Internal Size (W*D*H) |
700*595 *550mm |
900*595 *560mm |
1100*595 *550mm |
1200*595 *550mm |
1400*595 *550mm |
|
Work Surface Height |
750mm |
||||
|
Material |
Main Body: Cold-rolled steel with anti-bacteria powder coating |
||||
|
Work Table: 304 stainless steel |
|||||
|
Front & Side Windows |
5mm toughened glass, anti-UV |
||||
|
Motorized |
Manual |
Motorized |
Motorized |
Motorized |
|
|
Max Opening |
260mm |
320mm |
260mm |
260mm |
260mm |
|
Pre-filter |
Polyester fibre, Washable |
||||
|
HEPA Filter |
99.999% efficiency at 0.3μm. |
||||
|
Airflow Velocity |
0.3-0.5m/s, speed adjustable |
||||
|
Noise |
≤65dB |
||||
|
UV Lamp |
20W*1 |
20W*2 |
30W*1 |
30W*1 |
40W*1 |
|
Emission of 253.7 nanometres, with UV timer |
|||||
|
Illumination Lamp |
LED 8W*2 |
LED 12W*2 |
|||
|
Illumination |
≥1000Lux |
||||
|
Shelf with IV bar |
Stainless steel, 502*150*50mm (W*D*H) |
||||
|
caster |
Universal caster with levelling feet |
||||
|
Consumption |
400W |
300W |
600W |
600W |
600W |
|
Waterproof Socket |
Two, total load≤500W |
||||
|
Power Supply |
AC 220V±10%, 50/60Hz;110V±10%,60Hz |
||||
|
Standard Accessory |
UV lamp*3, Fluorescent lamp, Base stand, Waterproof socket*2, Shelf with IV bar |
||||
|
Gross Weight |
130kg |
150kg |
170kg |
180kg |
200kg |
|
Package Size (W*D*H) |
950*930 *1370mm |
1150*930 *1370mm |
1350*930 *1350mm |
1450*930 *1370mm |
1650*930 *1370mm |
